Stage Air Compressor

Get a Price/Quote

Product Details:

Motor Power 5 HP
Phase Single Phase
Power Rating 3.7 KW
Pressure Capacity 10 Bar
Weight 220 Kg
Drive Type Belt Drive
Flow Rate 14 CFM
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Stage Air Compressor Price And Quantity

Minimum Order Quantity 1 Piece

Stage Air Compressor Product Specifications

Lubrication Type Oil Lubricated
Weight 220 Kg
Cooling Method Air Cooled
Noise Level 68 dB(A)
Pressure Capacity 10 Bar
Type Of Compressor Stage Air Compressor
Power Rating 3.7 KW
Air Tank Capacity 150 Liters
Driven Mode Belt Driven
Voltage 230 V
Phase Single Phase
Motor Power 5 HP
Filtration Grade Industrial Grade
Control System Automatic
Allied Equipment Standard Accessories
Silent Yes
Frequency 50 Hz
Flow Rate 14 CFM
Power Source Electric
Configuration Horizontal
Drive Type Belt Drive

Stage Air Compressor Trade Information

Payment Terms Others
Delivery Time 7 Days
Main Domestic Market All India

Product Description

We have become a dominant player in the market of manufacturing and supplying Stage Air Compressor. This compressor is extensively used in chemical plants, fertilizer manufacturing unit and gas stations. To manufacture this compressor, we use optimum quality materials and components. Due to its low heat generation, this compressor is protected from wear. Operated by gas or electricity, this air compressor is easy to operate. It is available in different model with various pressure bearing ability, motor and receiver capacities. We offer Stage Air Compressor at reasonable prices.

Features:

Easy operation
Less energy consumption
Maintenance free

Specifications:

Model	Piston Displacement		Pressure		Motor (Hp)	Receiver Capacity Liters
Model	Lit / Min	Cf m	Kg / cm²g	psig	Motor (Hp)	Receiver Capacity Liters
PQ 3 - 2.75	219	7.75	12	170	2	150/250
PQ 3 - 7.75	219	7.75	15	215	3	150/250
PQ 3-11	312	11	12	170	3	150/250
PQ 5-11	312	11	15	215	5	150/250
PT 5 - 20	566	20	12.0	170	5	250
PT 5 - 20	566	20	15	215	7.5	250
TQR 7.5 -26	736	26	15	215	7.5	250/480
2 QR 10-30	850	30	12	170	10	250/480
2 TR 10-35	991	35	15	215	10	250/480
2 TR 10-40	1133	40	10.5	150	10	250/480
ATH - 43	1216	43	12	170	12.5	480
ATH -53	1500	53	12.0	170	15.0	480
AT 15 -73.5	2080	73.5	7.0	100	15.0	*
AT 20- 98	2773	98.0	7.0	100	20.0	*
AT 30 -98	2773	98.0	10.5	150	30.0	*
AT 35 -148	4188	148.0	10.5	150	35.0	*
AT 30 -148	4188	148.0	7.0	100	30.0	*

Durability and Performance You Can Trust

Manufactured from resilient cast iron, this 2-stage air compressor is designed to withstand rigorous industrial conditions. Its high-efficiency motor and double-stage compression system deliver consistent, powerful airflow, making it suitable for continuous use in workshops and manufacturing units.

Enhanced Safety and Maintenance

Safety is prioritized with devices such as a pressure relief valve and thermal overload protection. Automatic control ensures optimal performance, while industrial-grade filtration provides clean air output. The inclusion of standard accessories and comprehensive parts and labor warranty simplifies both operation and upkeep.

Low Noise, High Efficiency

Operating at only 68 dB(A), this compressor maintains a quiet working environment. With oil-lubrication, belt drive, and air-cooling, it ensures smooth and efficient functioning, supporting a maximum ambient temperature of 45C for reliable operation even in challenging climates.

FAQs of Stage Air Compressor:

Q: How does the 2-stage design of this air compressor benefit industrial applications?

A: The 2-stage design allows for increased efficiency and higher pressure output, making it ideal for applications requiring sustained, powerful air delivery. The staged compression reduces heat generation, maximizes performance, and extends the compressors lifespan.

Q: What safety devices are included, and how do they protect the compressor?

A: This model features a pressure relief valve and thermal overload protection. These ensure safe operation by preventing dangerous overpressure and automatically safeguarding the motor from overheating, thus reducing operational risks.

Q: When should maintenance and lubrication be performed?

A: Routine maintenance, including oil checks and filter cleaning, should be done according to the manufacturers scheduletypically every 5001000 operating hours. Proper oil lubrication is essential for the durability and smooth function of the compressors moving parts.

Q: Where is this compressor best installed for optimal operation?

A: It is best placed in a well-ventilated, clean, and dry environment with sufficient clearance for airflow around the unit. The compressors horizontal configuration and compact size allow flexibility in workshops, factories, or garages.

Q: What is the process for connecting the air outlet and starting the compressor?

A: Connect the 3/4 inch outlet securely to your pneumatic system. Ensure the power source matches the 230V, single-phase requirement. Switch on using the automatic control panel, and the compressor will begin operating within its set pressure range.

Q: How can users benefit from the silent and automatic features of this compressor?

A: With a noise level of only 68 dB(A) and automatic control, users experience a quieter workspace and reduced manual oversight. These features are especially valuable in settings requiring operator comfort and efficient workflow management.

Q: What warranty coverage does this air compressor include?

A: The compressor comes with comprehensive parts and labor warranty, offering protection against manufacturing defects and assuring users of prompt support and replacement if required during the warranty period.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Air Compressors' category

Mounted Air Compressor Minimum Order Quantity : 1 Weight : 155 kg Type Of Compressor : Other, Mounted Air Compressor Pressure Capacity : 8 Bar Phase : Single Phase Driven Mode : Belt Driven Voltage : 220240 V Allied Equipment : Other, Dryer, Filters, Hose Pipe Filtration Grade : Prefiltration, Fine filtration Control System : Other, Automatic Start/Stop Flow Rate : 285 L/min Frequency : 50 Hz Silent : Yes Power Source : Other, Electric Drive Type : Other, Belt Drive Lubrication Type : Other, Oil Lubricated Cooling Method : Air Cooled Noise Level : 65 dB Configuration : Stationary Air Tank Capacity : 160 Liters Power Rating : 2.2 kW Motor Power : 3 HP Refrigerant Type : R134a

Send Inquiry

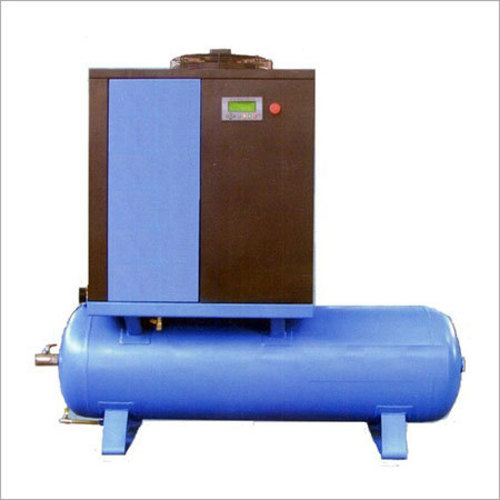

Screw Air Compressor Minimum Order Quantity : 1 Weight : 900 kg Type Of Compressor : Other, Screw Air Compressor Pressure Capacity : 8 bar Phase : Three Phase Driven Mode : Belt Drive Voltage : 415V Allied Equipment : Other, Air Dryer, Receiver Filtration Grade : Pre, Fine & Carbon Filtration Control System : Other, PLC Based Flow Rate : 65 CFM Frequency : 50 Hz Silent : Yes Power Source : Other, Electric Drive Type : Other, Direct Drive Lubrication Type : Other, Oil Lubricated Cooling Method : Air Cooled Noise Level : 68 dB(A) Configuration : Stationary Air Tank Capacity : 500 L Power Rating : 11 kW Motor Power : 15 HP Refrigerant Type : R134a

Send Inquiry

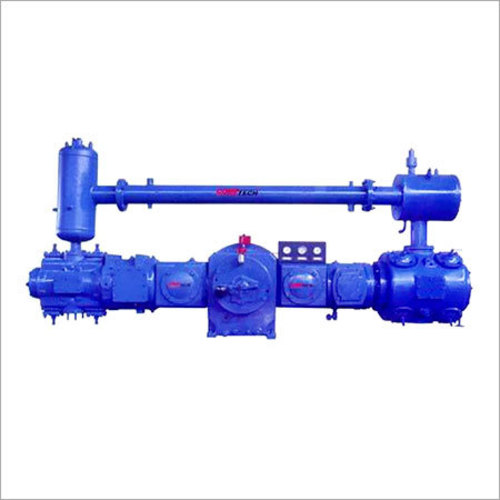

Opposed Compressor Minimum Order Quantity : 1 Weight : 450 kg Type Of Compressor : Other, Opposed Compressor Pressure Capacity : 10 Bar Phase : Three Phase Driven Mode : Electric Voltage : 380 V Allied Equipment : Other, Receiver, Filter, Dryer Filtration Grade : Industrial Grade Control System : Other, Automatic Flow Rate : 45 CFM Frequency : 50 Hz Silent : Yes Power Source : Ac Power Drive Type : Other, Belt Driven Lubrication Type : Other, Oil Lubricated Cooling Method : Air Cooled Noise Level : <70 dB Configuration : Other, Double Acting Air Tank Capacity : 500 L Power Rating : 5.5 kW Motor Power : 7.5 HP Refrigerant Type : R134a
